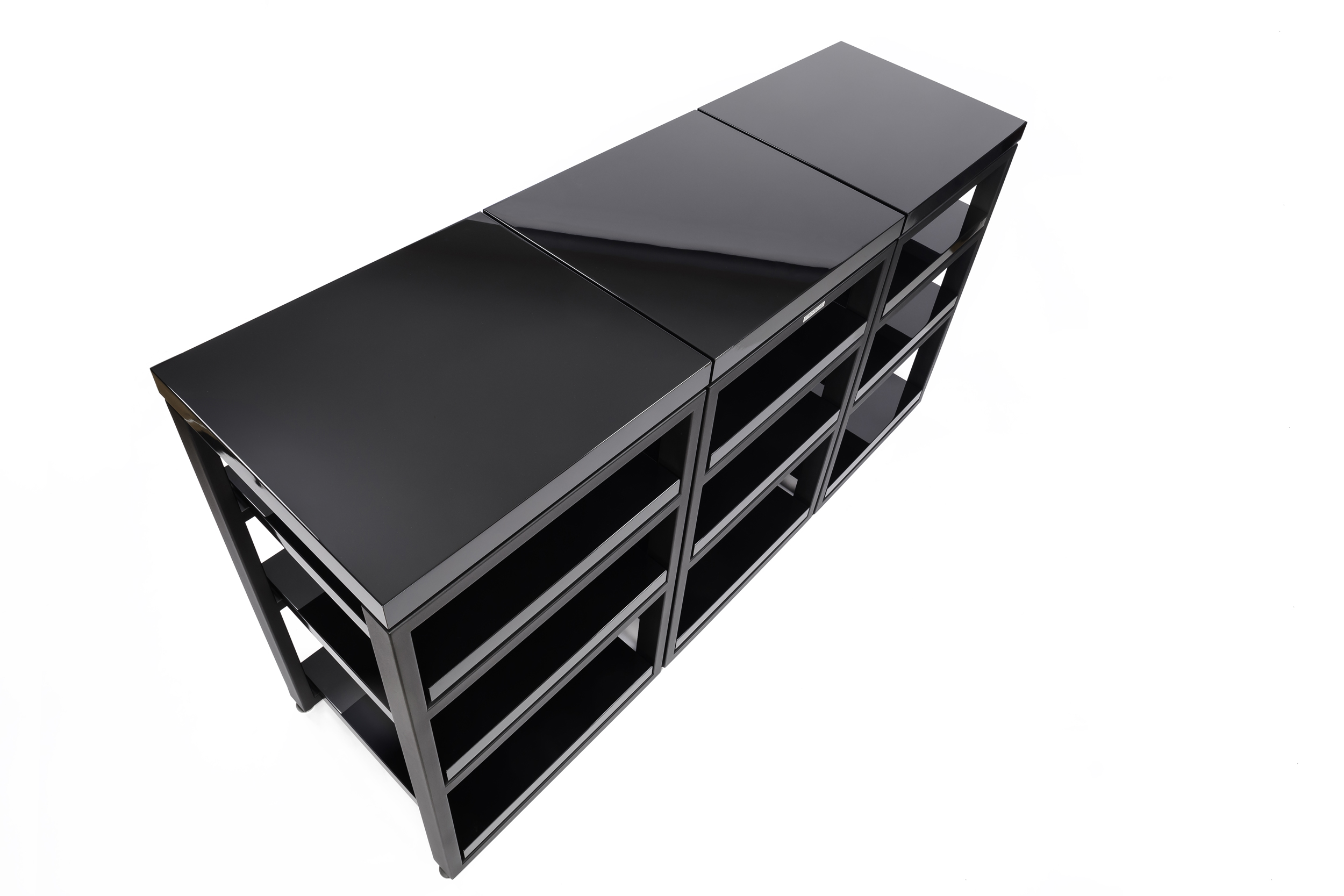

4-level modular stand (3-modular version presented here) with increased load capacity (150 kg for each shelf; a total of 1,800 kg). The shelves color: glossy piano black. The frame color: black (matt, fine grain). The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The structure consists of three individual, 4-level modules which can be placed side by side. The original set may be expanded by adding extra modules.
Upon customer request, it is possible to change the number of modules, their size and color, and the kind of decoupling.
Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION
Overall height: 998 mm;
Overall width: 1860 mm (620 mm / each module);
Overall depth: 560 mm;
Leg profile: 60 x 30 mm;
Top shelves: 1860 mm x 560 x 50 mm
(620 x 560 x 50 mm /each module);
Center and bottom shelves: 560 x 560 x 40 mm / each module;
Usable distance between the shelves (moving upwards): 290, 190, 160 mm;
Maximum load for each shelf: up to 150 kg (total: 1800 kg);
Ballast: quartz sand
A COMPLETE SET INCLUDES
3 steel frames;
12 shelves (MDF/HDF/MDF – sandwitch structure);
12 height-adjustable spikes;
BBS under each shelf;
12 massive anti-scratch disks protecting the floor
